DEVICES

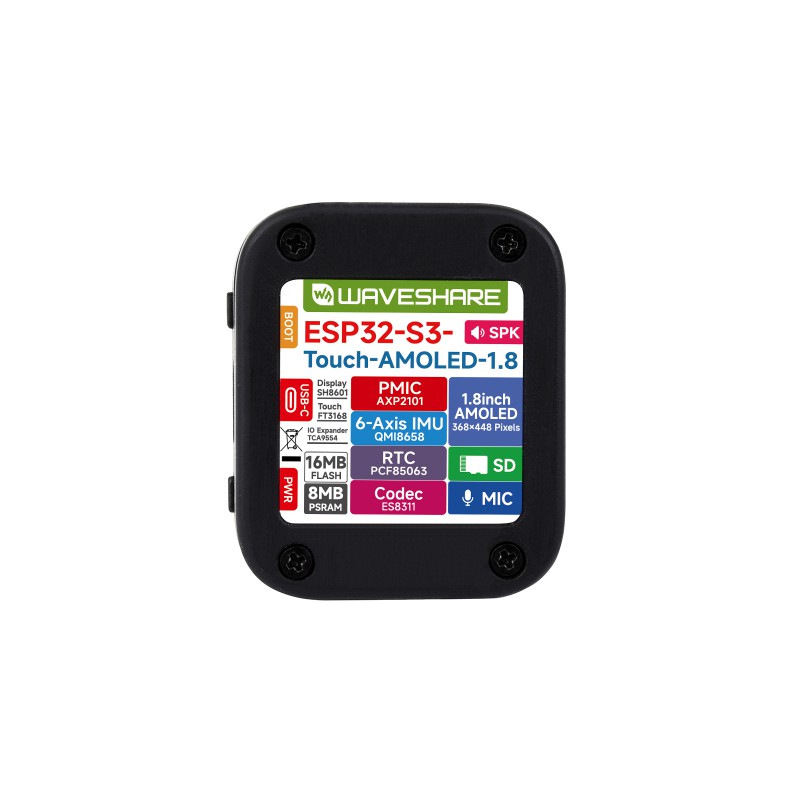

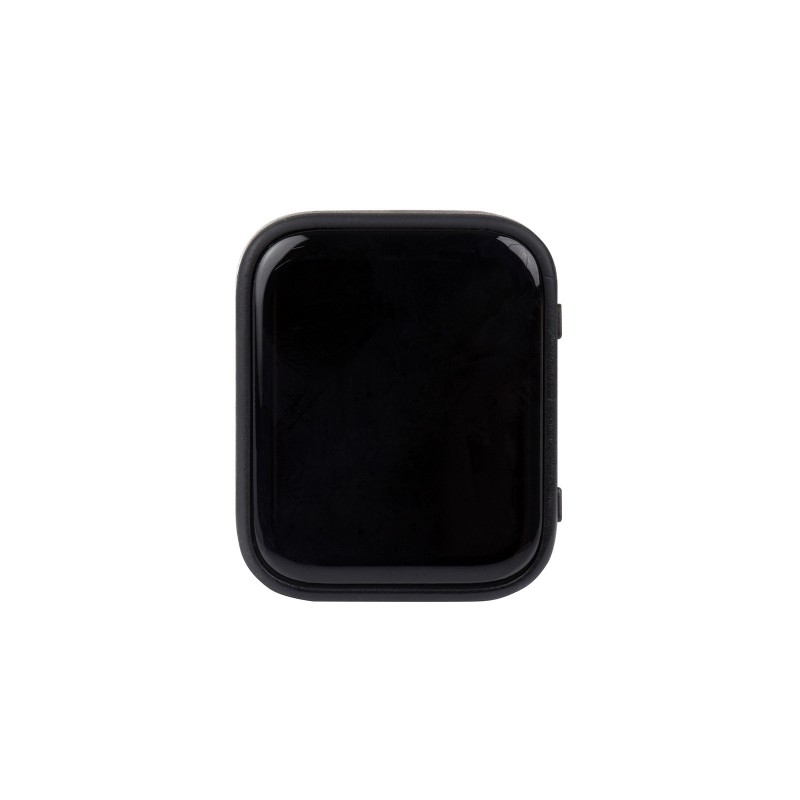

Waveshare ESP32-S3 AMOLED 1.8"

$29

Buy device (waveshare.com) →

Affiliate link.

Basics

  • PWR — short press: app input · long press (~6 s): power off · press when off: power on.
  • BOOT — short press: app input (usually select).
  • Flashing — turn off device, hold BOOT, press PWR shortly, release BOOT, plug in device. (OR try: hold BOOT, plug USB, release BOOT.)
  • Stuck? — hold PWR for ~10 seconds to power off, then short-press PWR to restart. If that doesn't work: unplug USB + LiPo, wait, then flash again in flashing mode.

Details

  • SoC: ESP32-S3R8 (Xtensa LX7 dual-core, 240 MHz)
  • Display: 1.8" AMOLED, 368x448, 16.7M colors
  • Memory: 512 KB SRAM + 8 MB PSRAM + 16 MB Flash
  • Wireless: Wi-Fi 802.11 b/g/n + Bluetooth 5.0 LE
  • Sensors: QMI8658 IMU, capacitive touch (FT3168)
  • Audio: ES8311 codec, speaker + microphone
  • Storage: MicroSD card slot
  • Power: USB-C, 3.7V LiPo battery connector

Waveshare ESP32-S3 2.06" AMOLED Touch

Buy device (waveshare.com) →

Affiliate link.

Details

  • SoC: ESP32-S3 (Xtensa LX7 dual-core, 240 MHz)
  • Display: 2.06" AMOLED, 410×502, 16.7M colors
  • Memory: 8 MB PSRAM + 32 MB Flash
  • Wireless: Wi-Fi 2.4 GHz + Bluetooth 5.0 LE
  • Sensors: QMI8658 IMU, capacitive touch, dual digital microphone array
  • Audio: ES8311 codec + ES7210 echo cancellation
  • RTC: PCF85063
  • PMU: AXP2101
  • Storage: MicroSD card slot
  • Power: USB-C, 3.7V MX1.25 LiPo connector
  • Buttons: PWR + BOOT (programmable)

New apps for this device coming soon. Device is also open for community submissions.

Waveshare ESP32-S3 1.75" AMOLED Touch

Buy device (waveshare.com) →

Affiliate link.

Details

  • SoC: ESP32-S3R8 (Xtensa LX7 dual-core, 240 MHz)
  • Display: 1.75" round AMOLED, 466×466, 16.7M colors, CO5300 driver (QSPI)
  • Touch: CST9217 capacitive (I²C)
  • Memory: 512 KB SRAM + 384 KB ROM + 8 MB PSRAM + 32 MB Flash
  • Wireless: Wi-Fi 2.4 GHz (802.11 b/g/n) + Bluetooth 5 LE
  • Sensors: QMI8658 6-axis IMU, dual-microphone array
  • Audio: codec + built-in speaker
  • Power: USB, 3.7V MX1.25 LiPo connector
  • Buttons: PWR + BOOT (programmable)
  • Case: CNC aluminum alloy

New apps for this device coming soon. Device is also open for community submissions.

Waveshare ESP32-S3 1.43" AMOLED Touch

Buy device (waveshare.com) →

Affiliate link.

Details

  • SoC: ESP32-S3-PICO-1-N8R8 (Xtensa LX7 dual-core, 240 MHz)
  • Display: 1.43" round AMOLED, 466×466, 16.7M colors, CO5300 driver (QSPI)
  • Touch: CST820 capacitive (I²C)
  • Memory: 512 KB SRAM + 384 KB ROM + 8 MB PSRAM + 8 MB Flash
  • Wireless: Wi-Fi 2.4 GHz (802.11 b/g/n) + Bluetooth 5 LE
  • Sensors: dual-microphone array, capacitive touch
  • Audio: codec + reserved speaker pads
  • Power: USB-C, 3.7V MX1.25 LiPo connector
  • Buttons: BOOT (programmable)

New apps for this device coming soon. Device is also open for community submissions.

more supported devices to come soon ...
